Custom Foam Packaging Inserts UK: Protecting Fragile Products Without Overpaying

Custom foam packaging inserts UK brands overpay for usually come down to one thing: cavity count, foam density, and cutting method get quoted out of order. Decide how many cavities the product needs first, the density, its weight, and fragility require second, and the cutting method last – and the price tends to correct itself without the product losing any protection.

Most UK brands overpay for bespoke foam without ever seeing a bad batch or a broken product turn up. There’s no cracked bottle, no dented box, no angry customer email to point at; the overspend just sits quietly in a spec sheet, decided weeks before a single sheet of foam gets cut. It usually comes down to one thing: the cutting method and foam density get locked in before anyone works out how many cavities the product actually needs. A supplier will happily quote a CNC-routed tray at prototype pricing for an order that’s really a die-cutting job, or spec a soft, expensive PU foam for something sturdy enough to travel safely in a firmer, cheaper grade – not because the supplier is cutting corners, but because nobody worked the numbers in the right order first.

Flip that order – cavity count first, density second, cutting method last – and something interesting happens: the price drops on its own, without the product losing an ounce of protection. That’s really what this guide is about. Not a single best type of foam, but a sequence of small decisions that, taken in the right order, stop a fragile product from either arriving broken or costing far more than it needed to. Three questions come up more than any others when UK brands start speccing a foam insert, so it’s worth answering them properly before getting into the details.

• Is die-cut or CNC foam cheaper for a small order?
• Does more foam mean better protection?
• How many cavities does a fragile product actually need?

Bespoke Foam Packaging Is Not One Product; It’s Four Separate Decisions

A foam insert’s price and performance come from four selections made in sequence: how many cavities it requires, what density the product’s weight and fragility require, which cutting method matches the order volume, and whether it needs a finish like anti-static film or a fabric lining. Skip the sequence and you end up paying CNC prices for a shape a die could have cut, or under-specifying density on something that needs more cushioning than a single foam layer gives. Most suppliers will quote whatever’s asked for; getting the sequence right before asking is what actually controls cost. Our packaging engineers run this sequence against a physical sample before quoting, instead of working from a drawing alone.

What Is the Real Distinction Between Die-Cut and CNC-Cut Foam?

Die-cutting uses a shaped steel tool pressed through a foam sheet – cheap per unit once the tool is made, but the tool itself is a fixed upfront cost. CNC routing only requires the machine and a cutting file, no tool to produce first, which is exactly why it works better for a prototype foam insert or a short run than die-cutting does. That advantage fades as volume climbs – somewhere between 150 and 300 units, the two methods cross over, and exactly where depends on how complicated the shape is. Below that range, CNC almost always wins on price; past it, die-cut foam packaging almost always comes out cheaper.

Is die-cut or CNC foam cheaper for a small order? CNC almost always wins below roughly 150 units, since there’s no tooling cost to absorb. Above that – the exact crossover shifts with shape complexity – die-cutting’s lower per-unit cost overtakes CNC’s higher per-unit but zero-tooling price. A prototype run cut on CNC and then reordered at volume without switching to a die is one of the most common places a small brand quietly overspends.

Foam Density Decides Whether a Product Survives the Second Drop, Not Just the First

The right foam density comes down to weight and fragility, not price – softer is not automatically safer. Polyurethane (PU) foam gives the softest cushioning and works well for light, fragile items; polyethylene (PE) foam and expanded polyethylene (EPE) foam hold their shape under repeated handling and cope better with moisture. A single hard knock in a transport test doesn’t tell the whole story either – foam that bottoms out on the first impact has nothing left to give on the second or third, further down the supply chain. Electronics need one more layer on top of density: anti-static foam, which draws static charge away instead of just cushioning against shock, matters just as much as the foam grade for circuit boards and exposed components. Before recommending a density, our materials team checks how well a foam recovers across repeated impacts, not just how it handles a single drop.

Does more foam mean better protection? No. Past a certain thickness, extra foam mostly adds cost and box weight – the cavity shape and density matched to the product’s actual weight do more for protection than raw material volume.

Anti-Static, Printed, and Fabric-Lined Foam Finishes

Which finish a foam insert requires depends on what’s going inside it, not on how good the brand wants the unboxing to feel. Anti-static foam is graded by surface resistivity, not just labelled “ESD-safe” on a spec sheet. Under the ESD Association/EIA classification system, conductive foam sits below roughly 10⁴–10⁵ ohms per square, static-dissipative foam falls between 10⁵ and 10¹² ohms per square, and insulative materials sit above 10¹² ohms per square – pink anti-static foam typically falls in the dissipative range, with black conductive foam at the low end for the most sensitive components. Circuit boards and connector pins usually only need the dissipative grade; densely packed multi-pin assemblies benefit from conductive foam’s Faraday-cage-style effect instead.

A fabric-lined foam insert adds a soft outer skin – a flocked or velvet-style laminate over the cushioning layer – and is worth the extra cost for presentation pieces, jewellery, optics, and delicate electronics where the product sits visibly inside an open box instead of being hidden. Similar presentation thinking sits behind our cosmetic rigid boxes range, where a foam or velvet insert does the same visible-product job. Printed foam, where a logo or instructions are printed directly onto the insert surface, works nicely for retail unboxing but adds a lead-time step for print registration that a plain-cut insert doesn’t require. Neither finish changes the underlying cushioning performance; their presentation and handling choices are layered on top of a correctly specified cavity and density, not replacements for getting those right first.

How Many Cavities Does a Fragile Product Actually Need?

A fixed cavity cut precisely around one product gives the most protection per gram of foam used; a single open block with a rough cut-out costs less to make but leaves more room for movement in transit – the same insert-fitted stability logic behind our lipstick boxes, where a die-cut or foam cavity holds the bottle firmly to stop tip-over and seal stress during shipping. Multi-item cavity sets – a gift box with three glass bottles, for instance – usually need cavities separated by at least 8–10mm of solid foam wall, or the items can knock against each other through the padding rather than being stopped by it.

As an illustrative example: a fragrance brand shipping a three-bottle set found this out mid-run – a shared cavity with a thin 4mm divider allowed the bottles to rock into each other during handling, and changing to a 10mm divider with individually profiled cavities stopped it without changing the outer box at all. A fix worth retaining if you’re specifying inserts for glass alongside our Fragrances & Perfumes range.

Is it worth spending extra for a custom profiled hole over a standard rectangular cut-out? For fragile objects – glass, ceramics, delicate electronics – yes, because the profiled cavity stops the product from moving at all instead of cushioning it once it does. For sturdier objects, a rectangular cut-out with a stronger foam density consistently performs almost as well for less tooling cost.

How Foam Inserts Are Tested Before They Ship

A foam insert spec isn’t confirmed until it’s been through a distribution-style test, not just a single drop on a storage floor. ISTA testing is the industry reference point: ISTA 1-series covers basic drop, vibration, and compression checks and is adequate for early-stage development; ISTA 2- and 3-series add environmental exposure and a simulation of what a parcel actually goes through across a carrier network – temperature and humidity soak, repeated vibration, and compression under stacking load. Repeat-impact testing calculates how a foam pad holds its shape and cushioning ability after being loaded multiple times, not just whether it survives one impact, which is why a single drop test can pass a spec that then fails on the second or third handling event further down the chain.

Our quality team runs cavity samples through a compression and repeat-drop sequence before a spec is signed off, instead of approving on the strength of a single successful test – the same logic covered in the density section above, checking a product’s second and third impacts, not just its first.

Where Small UK Brands Typically Overspend on Foam Packaging

Three patterns show up again and again in specs that cost more than they needed to:

• Reordering CNC-cut foam at volume instead of switching to a die-cut tool once the order size clears the 150–300 unit crossover point
• Specifying PU foam density by default for products sturdy enough to ship safely in firmer, cheaper PE foam
• Cutting one cavity per product when a shared, correctly-partitioned cavity would hold multiple items just as securely for less material

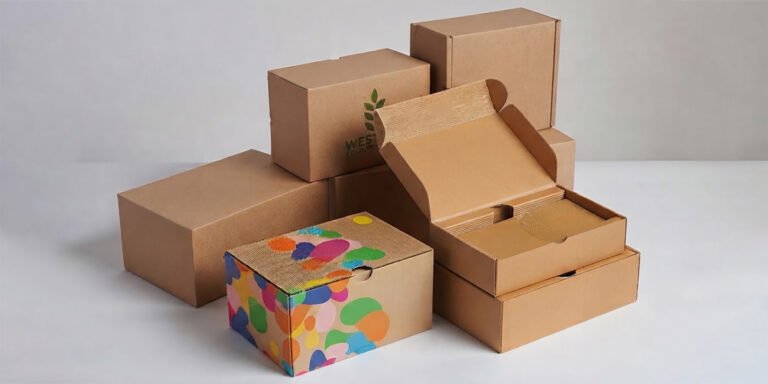

None of these means cutting corners on protection – they mean matching the spec to what the product actually requires, rather than to what feels safest on paper. If the foam insert sits inside a shipping carton, it’s worth checking that the outer box is pulling its weight too; our corrugated boxes range covers flute and ECT selection for the box side of that equation, and our book-style rigid boxes range shows how a foam or velvet insert integrates into a hinged presentation box specifically.

Are Custom Foam Packaging Inserts Reusable in the UK?

Foam is reusable, but very little of it goes through UK kerbside collection. Both PE foam and PU foam are reusable materials in principle – polyethylene foam in particular can be reheated and reprocessed multiple times without losing its cushioning properties – but foam of any type isn’t currently accepted in standard household or workplace kerbside collections, so a specialist recycling route or a recycled-content foam selection matters more than the recyclable label alone.

Do foam inserts count toward EPR obligations even though they’re not kerbside-collected? Yes. Brands working out their EPR duties should treat foam inserts the same way as any other plastic packaging element reported under the scheme, rather than excluding foam because it isn’t picked up at the kerb.

Selecting recycled-content foam where the application allows it – most PE-based inserts can take a recycled percentage without a meaningful cushioning trade-off – is a more practical sustainability lever than chasing kerbside recyclability, which isn’t yet available for foam packaging regardless of the material selected.

What Hale Path Packaging Offers on Custom Foam Inserts

Foam insert specs get cheaper and more accurate when the cavity layout is worked out against a real sample of the product rather than a drawing. Hale Path Packaging runs die-cut and CNC-routed foam inserts for UK brands, drawing on 10 years of in-house packaging experience, and maps cavity count, foam density, and cutting method against your order volume before quoting – so the spec matches the product rather than the other way round. This is the same fit-first approach behind our round rigid boxes and white rigid boxes ranges, where the insert and box are specced together rather than separately.

Conclusion

The pattern behind most overspending on foam packaging is not a bad supplier or a cheap material – it’s a spec built before the product’s actual weight, fragility, and order volume were properly worked out. Decide cavity count first, density second, and cutting method last, and the cost tends to sort itself out. If a foam insert you’re currently paying for was quoted before that sequence was clear, it’s worth having it checked against a real sample; the fix is usually smaller than a full respec, and it pays for itself within the first reorder.

Written by the Hale Path Packaging team, packaging specialists with 10 years of experience supplying protective and presentation foam packaging to independent and growing brands across the UK.
